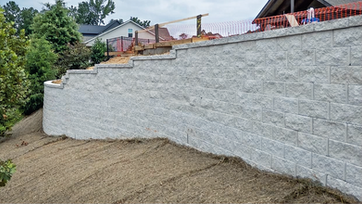

GravityStone® Evo
Evolved Design. Unyielding Strength
For over 30 years, GravityStone® has set the standard for innovation and flexibility in the segmental retaining wall industry.
Now, the next generation has arrived. GravityStone® Evo (A.B.A Fat Face® 2.0) is a patented, fully engineered commercial grade segmental retaining wall block system that is lighter, stronger, and more versatile than ever before. Designed to reduce weight without compromising structural or geotechnical performance, Evo delivers unmatched efficiency in retaining wall construction.
With GravityStone® Evo, you get what other systems can’t offer—lower costs, faster installation, reduced labor demands, and maximum design flexibility—all within a single, intelligent solution.
The 1-2-6 Advantage
-
1 Lightweight Product
-
20% lighter than traditional SRW units, reducing labor strain, and increased productivity, increasing shipping ranges, and maximizing shipped sqft.
-
-
2 Structural Systems
-
MSE Walls for fill sites
-
Modular Gravity Walls for cut applications and tight spaces
-
-
6 Structural Configurations - Designed to tackle even the most complex grade-change challenges:
-
GravityStone® Evo MSE and small gravity structures
-
GravityStone® Evo combined with Modular SRW components can build large gravity structures without utilizing geogrid
-
GravityStone® Evo Hybrid - Interconnects MSE and Modular systems for customized solutions.
-
GravityStone® Slide Stop is the solution for narrow footprint, poor soil sites
-
GravityStone® BarrierWall creates double-sided, free-standing walls, fences, and parapets
-
So Simple. It's Advanced
Experience the next Evolution in retaining wall solutions with GravityStone® EVO
Unit Dimensions
GravityStone Evo (MSE)
Evo(Fat Face 2.0)
Dimensions: 18" x 8" x 10.125"
GravityStone Evo (Modular)
Evo:18" x 8" x 10.125"
Trunk: 24" x 8" x 4"
Anchor Junction : 12" x 8" x 6"
Modular Dimensions
Evo Mini Cell
Dimensions: 18x8x24"
Evo Single+ Mini Cell
Dimensions:
18 x 8 x 50"
Evo Single Cell
Dimensions: 18x8x36"
Evo Double Cell
Dimensions:
18 x 8 x 62"
Two Structural Systems
GravityStone® Evo
Evolved Segmental Retaining Wall solutions
-
20% lighter than traditional SRWs easing the construction of durable retaining walls
-
Complies with NCMA Best Practices Dimensions
-
Concave, Convex, and 90° Corners
-
Vertical or Battered walls using the Reversible Alignment Plug (RAP)
-
Used in conjunction with geosynthetic allows durable Mechanically Stabilized Embankment walls
GravityStone® Evo Modular
The ultimate Stack-n-Fill system.
-
No Geotextile Required
-
Minimize excavation in cut sites
-
Trunks and Anchors interconnect to form modular cells
-
Vertical or Battered Walls using the Reversible Alignment Plug (RAP)
-
Concave, Convex and 90° Corners
-
Create Fences, Pillars, and Planters with the same components
The Structural Systems
M.S.E.
Modular
GravityStone Evo (Fat Face 2.0) combined with geogrid is ideal for fill site applications. The system can be constructed as a vertical wall or with a 4.5° batter, depending on design requirements.
Ideal for cut sites, GravityStone Evo (Fat Face 2.0) can interlock with GravityStone Trunks and Anchors to form multi-depth modular gravity walls. This configuration allows wall footprints as narrow as 30% of wall height, depending on soil and site conditions. The system can be constructed as a vertical wall or with a 4.5° batter, depending on design requirements.
Hybrid
M.S.E. Over Modular
Using GravityStone Evo Modular in the lower portion of the wall reduces excavation and overall footprint. The wall can then transition to MSE construction once sufficient space is available behind the wall to accommodate required geogrid lengths. The system can be constructed as a vertical wall or with a 4.5° batter, depending on design requirements.
Lateral Hybrid
Hybrid
Modular Over M.S.E.
Green Walls
Advanced Applications
Placing GravityStone Evo Modular in the upper portion of the wall creates a large void zone for utilities, structures, or penetrations—without interfering with the reinforced MSE zone below. The system can be constructed as a vertical wall or with a 4.5° batter, depending on design requirements.
The system can be combined side-by-side, using MSE where space allows and transitioning to modular construction to navigate obstacles or where a narrower footprint is required. The system can be constructed as a vertical wall or with a 4.5° batter, depending on design requirements.
By stepping the face back as the cells transition from triple to double to single depth, integrated planting beds can be created. This breaks up the vertical wall face and creates the appearance of a tiered design—without requiring additional excavation into the embankment.
